C.I. Brake Drum Coupling

C.I. Brake Drum Coupling Preview

C.I. Brake Drum Coupling

C.I. Brake Drum Coupling

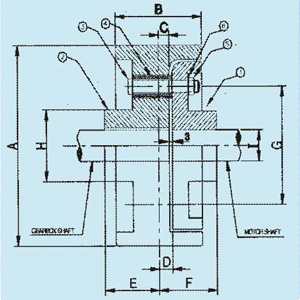

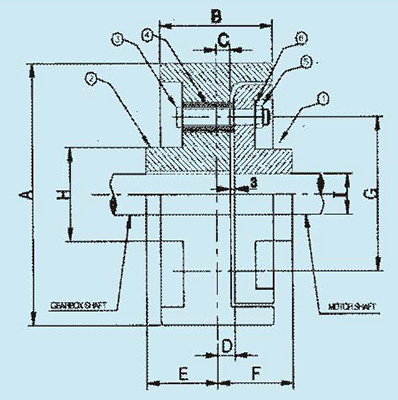

Technical Specification

Coupling Size	ØA	B	C	D	E	F	ØG	ØH	FINISH BORE(I)		Weight Kg.	TORQUE	HP/RPM	CD2 KGM2
Coupling Size	ØA	B	C	D	E	F	ØG	ØH	Min.	Max.	Weight Kg.	TORQUE	HP/RPM	CD2 KGM2
RFBC 150	150	75	3	6	42	42	92	70	20	35	8	36	0.028	0.09
RFBC 200	200	100	6	10	57	73	127	90	20	55	20	63	0.050	0.32
RFBC 250	250	127	6	10	82	98	142	100	25	60	36	90	0.125	1.0
RFBC 300	300	152	6	10	89	105	197	127	25	75	57	250	0.350	2.5
RFBC 400	400	165	3	6	147	156	250	137	25	85	112	360	0.500	9.94
